PMYP-A

Short Description:

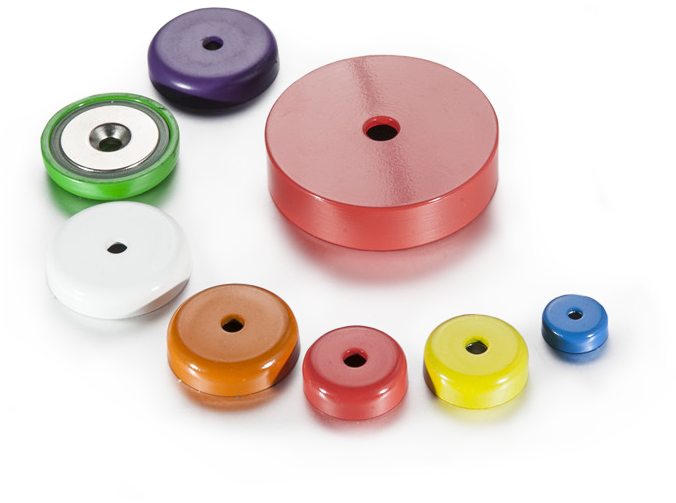

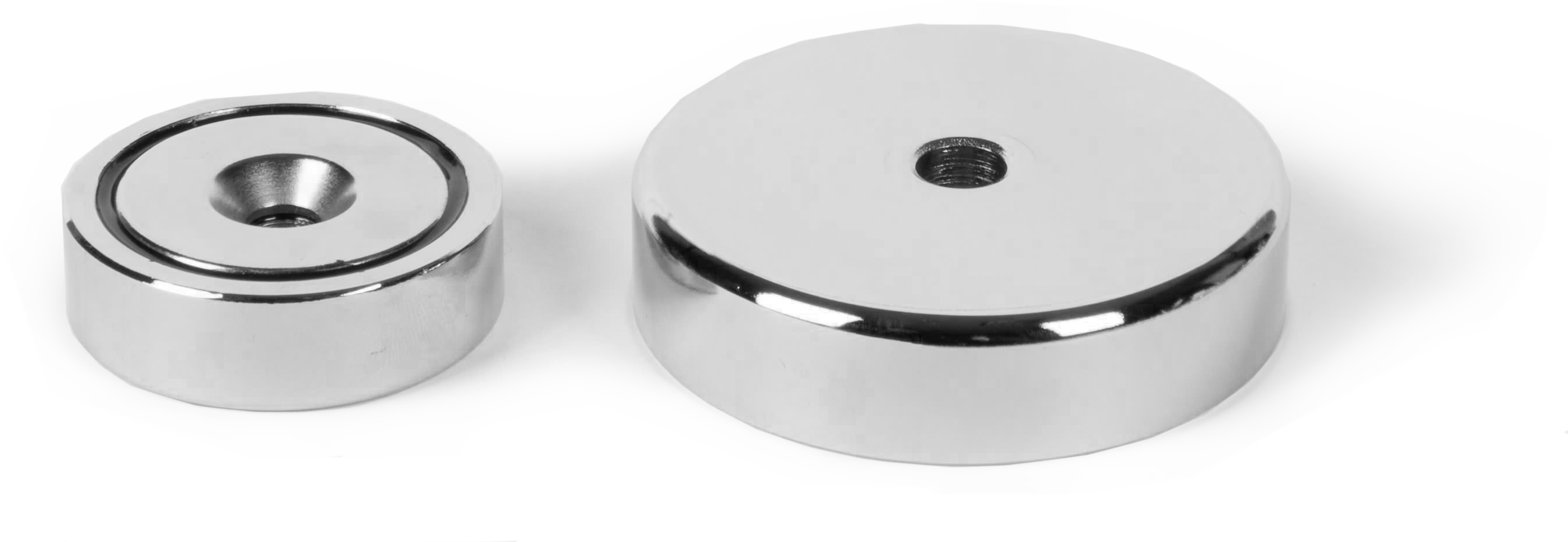

The size of these pots is from 10mm to 90mm, also support the customers’ design with direct factory manufactory price. Or, you could tell us your requirements for pull force, we can also recommend or design a pot magnet for you! Our magnetic power could be 1kg~500kg! Also, the cladding material is also could be chosen, like Ni/Cr/Zn or some others for outlook and corrosion resistance requirements.

Send email to us

Product Detail

Product Tags

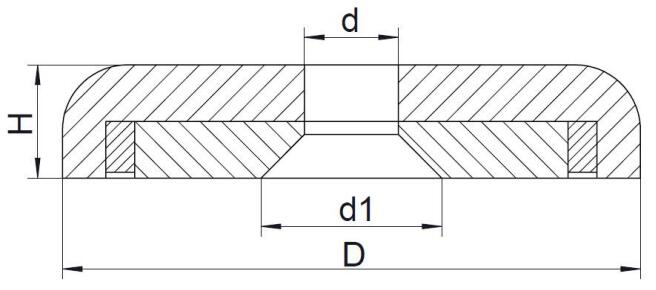

Model	D(mm)	d(mm)	d1(mm)	H(mm)	Weight(g)	Pull Force(kg)
PMYP-A10	10	3.5	6	4.5	3	1-2
PMYP-A12	12	3.5	6	4.5	4	2-3
PMYP-A16	16	3.5	6	5	5.5	6-8
PMYP-A20	20	4.5	8.3	7	12	11-15
PMYP-A25	25	5.5	10	8	21	20-25
PMYP-A32	32	5.5	10	8	37	35-40
PMYP-A36	36	5.5	10	8	45	40-50
PMYP-A42	42	6.3	12	9	72	60-75
PMYP-A48	48	8.3	17	11.5	125	85-100
PMYP-A60	60	8.3	17	15	250	120-150
PMYP-A75	75	10.3	18	18	465	220-250
PMYP-A90	90	11.5	20	18	860	280-360
